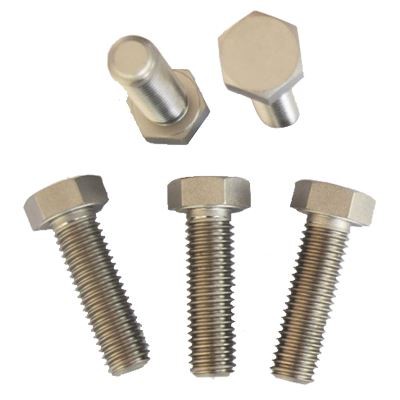

GR5 Titanium Alloy Hex Bolts
Head Shape: Hex Bolts
Grade：GR5
Titanium Content: 98%
Color: green, blue, gold, black, purple, rainbow, etc
Surface Treatment: Anodizing
Forming Process: CNC
Minimum Order Quantity: 200 PCS
Delivery Time: 7-20 Days
Products Description
GR1 titanium alloy has good comprehensive properties, its high strength, can provide reliable fastening force, to ensure the stability of the connection. At the same time, it also has excellent toughness, which is not easy to break when bearing large loads.
Whether it is in a humid Marine environment or in a chemically corrosive industrial scene, it can maintain a good condition and is not easy to rust and be corroded.
In shipbuilding, GR1 titanium alloy bolts are often used to connect key parts to resist seawater erosion; In chemical equipment, it can work stably for a long time under the action of various corrosive media.
Its thermal stability is also good, and its performance changes relatively little in high temperature environments. This makes it useful in some equipment that works at high temperatures.
|
Argument |
Description |
Standard value |
Remark |
|
Material grade |
GR1 titanium alloy |
GB/T 3620-1993 |
GR1 titanium alloy is a kind of industrial pure titanium, with good mechanical properties and corrosion resistance |
|
Thread size |
The inside diameter of the thread, in mm |
M3-M48 |
Select the appropriate thread size according to the actual application requirements |
|
Screw pitch |
The distance, in mm, between two adjacent peaks on a thread |
0.5-5 |
Select the appropriate pitch according to the thread size |
|
Thread height |
The distance between the thread peak and the thread valley, in mm |
0.433-4.716 |
Usually 0.866 times pitch |
|
Thread diameter |
The outside diameter of the thread, in mm |
Calculated according to pitch |
Thread size plus 1.226 times pitch |
|
Bolts length |
Total length of the bolt, in mm |
Various lengths available |
Select the appropriate bolt length according to the structure and thickness of the connector |
|
Hexagonal opposite side dimensions |
Length of opposite sides of the bolt hexagon, in mm |
5.5-75 |
Select the appropriate hexagon opposite side size according to the thread size |
|
Tensile strength |
The maximum stress that the material can withstand during the tensile process is expressed in MPa |
≥450 |
Minimum tensile strength requirements |
|
Yield strength |
The stress of plastic deformation of the material during the tensile process is expressed in MPa |
≥280 |
Minimum yield strength requirements |
|
Rate of elongation |
The percentage of elongation of the material before tensile fracture |
≥20% |
Minimum elongation requirements |
|
Hardness |
The hardness of the material, in HB |
100-150 |
GR1 titanium alloy bolt hardness range |
Specification and size
Bolts made of GR1 titanium alloy often include requirements that include dimensions, pitch, length, size, and kind of head.
|
Serial number |
Application field |
Application details |
|
1 |
Aerospace |
GR1 titanium amalgam bolts are broadly utilized in airplane, space apparatus and other aviation fields as a result of their high strength, low thickness and phenomenal erosion obstruction. |
|
2 |
Automobile manufacturing |
Bolts are additionally broadly utilized in the car fabricating field, primarily for the association of auto suspension frameworks, motors and different parts. |
|
3 |
Chemical industry |
Bolts are also widely used in the chemical industry to connect various chemical equipment because they are resistant to corrosion. |
|
4 |
Medical device |
GR1 titanium alloy bolts are also used in the manufacture of medical devices, such as artificial joints, bone retainers, etc. |
|
5 |
Sports equipment |
GR1 titanium alloy bolts are also widely used in the manufacture of sports equipment, such as bicycles, golf clubs and so on, because of their lightweight and high-strength characteristics. |
FAQ
Q1. How can we guarantee quality?
Always a pre-production sample before mass production, Always final inspection before shipment
Q2. What can you buy from us?
GR1 Titanium alloy bolts
Q3. What's the delivery time?
If have stock, takes 3-7 days; if no stock, 20-45 days
Q4. What's the packing?
Neutral packing or Exclusive customization.
